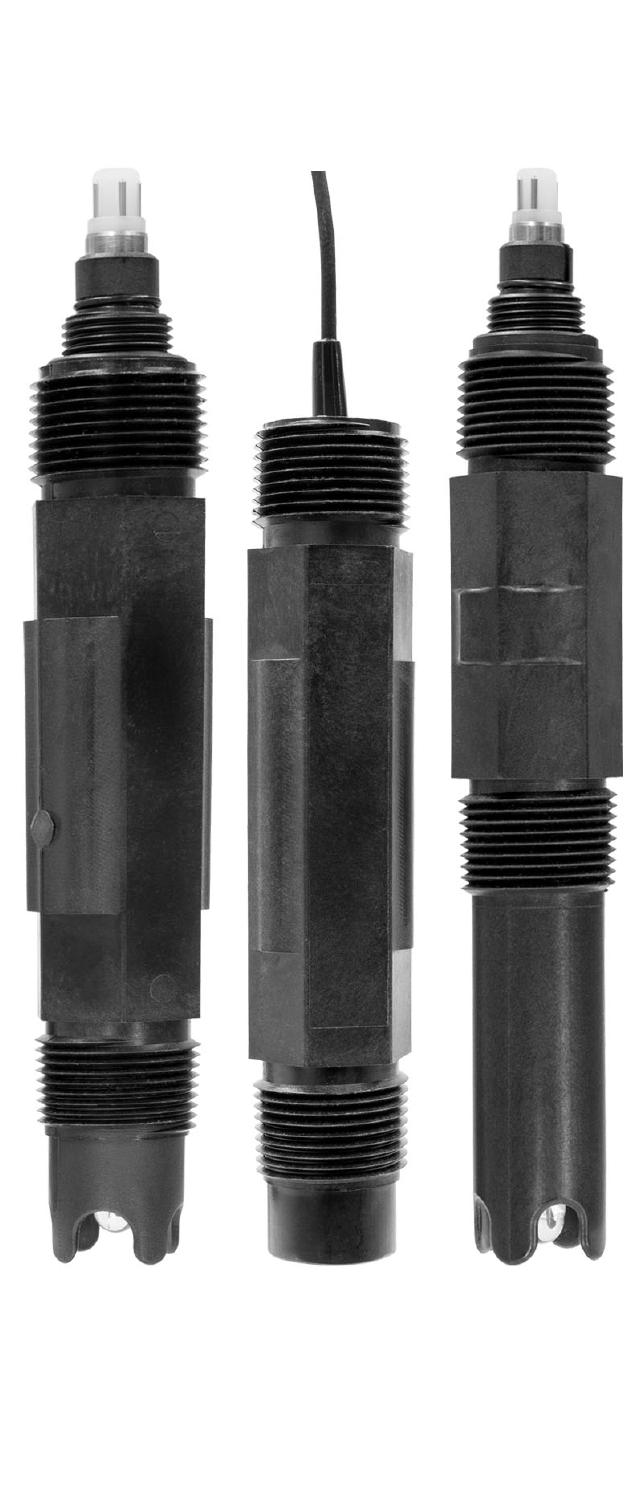

Compact pH and ORP electrodes with ¾” MNPT housing for flow and immersion installation.
OCPF81 and OCPF82
• Process monitoring and control
• Industrial and municipal wastewater treatment
• Water treatment
• Mining processes (flotation and leaching processes)• Second electrolyte bridge for improved protection against electrode poisons such as
S2- or CN- ions
• TOP68 plug-in head or fixed cable in three lengths:
– 4.6 m (15 ft)
– 9.2 m (30 ft)
– 13.8 m (45 ft)
• Optionally available with flat membrane for viscous, fibrous media
• Threaded connection NPT ¾" top and bottom for easy installation at user end
• OCPF81: Suitable for measurements within pH range 0 to 14 and within
temperature range 0 to 110 °C (32 to 230 °F)
• OCPF82: Suitable for measurements within ORP range -1500 mV to 1500 mV
• With or without integrated temperature sensor
• Protection guard against damageOCPF81 and OCPF82
Compact pH and ORP electrodes with ¾” MNPT
housing for flow and immersion installation
